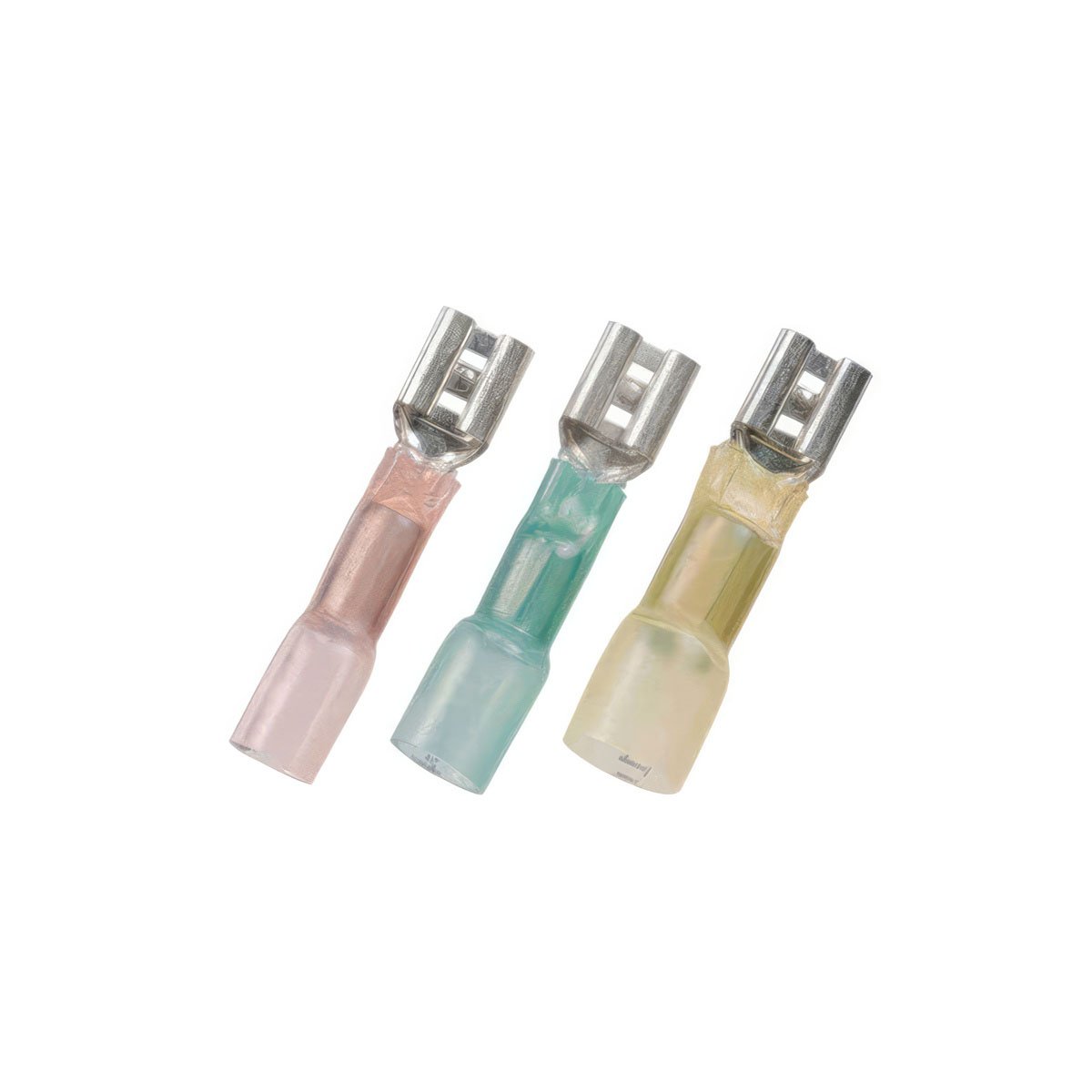

16-14 AWG .250 Tab CSS Heat Shrink FM Disconnect – Blue (10-Pack)

• Crimp and Solder Seal terminals feature a band of solder above the connection.
• After crimping normally, apply heat to activate the heat shrink.
• The low melt solder will flow into the connection.
• This provides the best possible connection – no loss of conductivity and is stronger than the wires themselves.
• Heat Shrink Terminals have been adhesive-lined to seal the connection.
• The translucent tubing allows for visual inspection.
• Terminals provide maximum contact and tensile strength after crimping.
• terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated.
• Electro Tin plating provides exceptional corrosion resistance.
• Insulator sleeve is color-coded for wire size and identification.

oemno:
Warranty: 6 Months
United Pacific Category: Wire Terminals
